Kowa TSN-DA20 Digiscoping Adapter for TSN-660M - 600 - 82SV - 550 Series
- Digiscopy adapter for lightweight system cameras
- Compatible with the TSN-660/600/550 series spotting scopes and the TSN-82SV
- Optional accessories allow the camera to be used with either a fixed focal length lens or a camera body
- Adjustability of the zoom eyepiece is maintained
- Optimal for use with lightweight cameras with MFT sensors

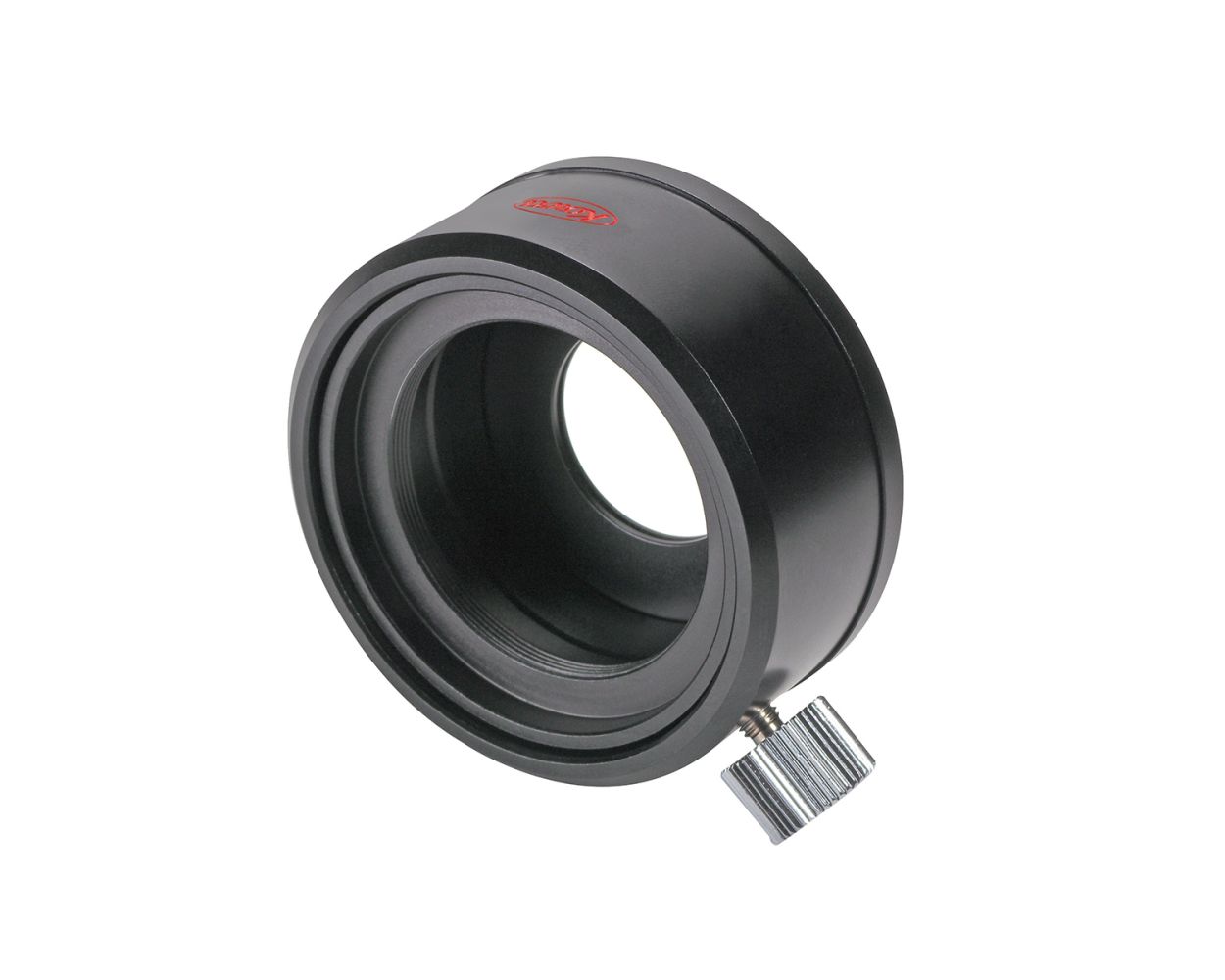

TSN-DA20 Digiscoping Adapter
CAUTION: The Kowa TSN-DA20 System works with all camera sensor body sizes but larger systems may exert too much stress on your lens filter thread.
Compatiable current Kowa System S eyepieces:
TSE-Z9B (20-60x zoom)
TE-14WD (30x wide zoom)
TSN-550 compact spotting scope
The Kowa TSN-DA20 is designed to work with our current TE-Z9B 20-60x zoom eyepiece, TE-14WD 30x wide zoom eyepiece, the Kowa-TSN 550 series spotting scopes and also High Lander eyepieces with 32x / 21x / 50x magnification.
Set-up is easy. Simply unscrew the eyepiece eye-relief cap on the eyepiece and screw on the DA20 inner collar in its place. Simply add one of our adapter rings (sold separately) depending on the filter size of your lens. Sizes available: AR28/30/30.5/37/43/46/52/55/58/62/72mm these adapter rings fit between your lens and the DA20. Finally push the connected DA20 and camera body combination over the collar and secure.
Alternatively you can connect the TSN-DA20 directly to your camera body without a lens – simply purchase the Kowa TSN-AR42 GT adapter ring with standard 42mm T2 mount fitting and add a T2 ring to match your camera system between camera body and adapter.
You can easily switch from landscape to portrait position and quickly slide off for normal observation. All camera functions remain including camera lens auto-focus and focus peaking. The full zoom range of the eyepiece is available creating incredible telephoto possibilities for such a compact system.
Performance and ease of use of this system is exceptional. Using a wide aperture fast lens delivers blisteringly fast shutter speeds with low ISO settings, combined with a Kowa spotting scope – image quality is excellent.
