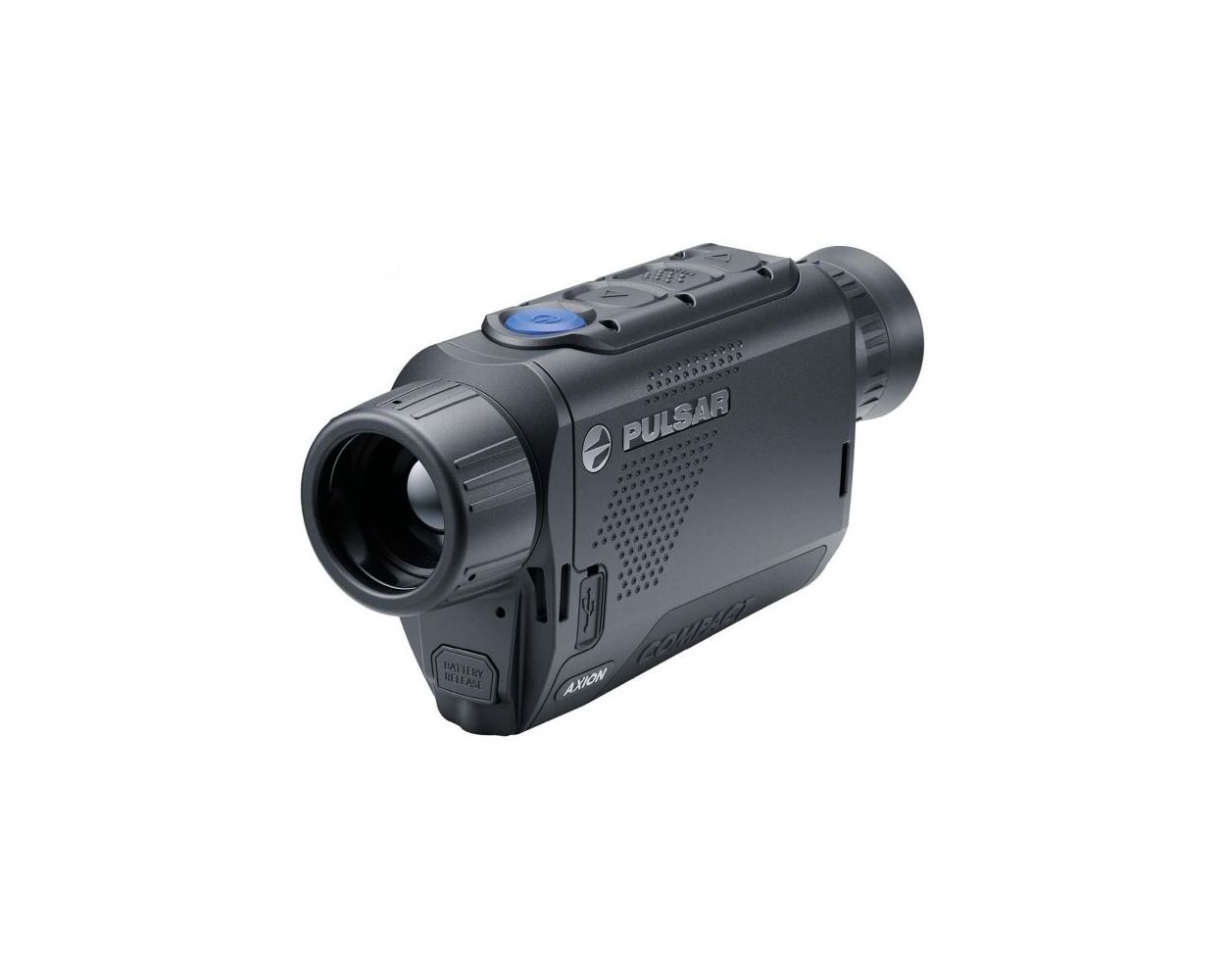

Pulsar Axion Compact XG30 Thermal Monocular
- Highly sensitive 640x480, 12 µm thermal imaging sensor
- High contrast frost-free AMOLED display
- 8 colour palettes
- Up to 1300m detection range
- Wide field of view
- Up to 7 hours battery life on a single charge (depending on temperature)
- Magnesium alloy body
- IPX7 waterproof
- Built-in video and still image recorder
- Stream Vision 2 compatible
Discover unmatched thermal imaging power in the Pulsar Axion Compact XG30, a lightweight and pocket-sized device designed to deliver outstanding thermal performance. With a high-quality 640×480, 12µm Lynred thermal sensor and a powerful 30mm f1.2 germanium objective lens, this compact monocular identifies even subtle heat signatures with precision, up to 1300 meters away. Perfect for wildlife observation, search and rescue, or security applications, the Axion Compact XG30 is engineered to excel in all light conditions.
Compact Design, Maximum Performance
Though compact enough to fit in your hand, the Axion XG30 offers the robust performance of larger thermal devices. Its sensitive Lynred sensor and wide field of view reveal intricate details in a broad observational area, ensuring users never miss a moment, day or night.
Extended Range and Field of View
Featuring a 14.6° field of view, the Axion XG30 lets you easily scan large areas, ideal for tracking distant subjects with superior clarity. From detecting an animal’s features to identifying objects at up to 1300 meters, this monocular brings clarity to long-range thermal observation.
Reliable and Long-Lasting Battery Life
Equipped with a rechargeable, removable APS3 battery, the Axion Compact XG30 supports up to 7 hours of uninterrupted use. For extended sessions, bring a spare battery to continue your observations through extended fieldwork without interruption.
Rugged and Weatherproof Construction
Designed for real-world conditions, the IPX7-rated magnesium alloy body of the Axion XG30 withstands rain, snow, fog, and immersion in water. A stylish rubberized grip provides additional security in all weather, making this monocular as resilient as it is advanced.
Adaptive Colour Palettes
Select from eight distinct colour palettes to suit your environment and observation needs. Options like White Hot, Black Hot, and Red Hot are optimal for detection, while Rainbow and Ultramarine enhance detail identification. For extended nighttime observation, Red Monochrome, Sepia, and Violet help reduce eye strain.
Built-in Video Recorder and Stream Vision 2 Connectivity
Capture every moment with built-in video and still image recording. Use the device's generous internal memory or upload files to the cloud via the Stream Vision 2 app, which connects the Axion Compact XG30 to your Android or iOS device for remote control, real-time display, and firmware updates.
Technical Specifications
Thermal Sensor: 640×480, 12µm, <40 mK NETD
Objective Lens: 30mm f1.2
Frame Rate: 50 Hz
Magnification: 2.0-16.0x
FOV: 14.6° | 25.6m @ 100 m
Eye Relief: 14 mm
Detection Range: 1300 m
Rangefinder: Stadiametric
Battery: Pulsar APS3 rechargeable & replaceable battery
Battery Life: Up to 7 hours
Audio/Video: Built-in video recorder (w/ audio) & still image capture
Internal Memory: 64GB
Video Format: MP4
Video Resolution: 960×900
Image Format: .JPG
Image Resolution: 960×600
Wi-Fi: Yes
Stream Vision: 2 Yes
Body Material: Magnesium alloy
Level of Protection: IPX7
Operating Temperature: -25 to +40°C
Dimensions: 144 x 41 x 69 mm
Weight: 310g
